Create KVM Site

Published April 5, 2023 | Last modified October 20, 2026

Objective

Important: This is a legacy workflow for deploying Customer Edge (CE) Sites and is not recommended to use. A new workflow for deploying Customer Edge (CE) Sites has been introduced and is now Generally Available (GA). F5 recommends that you use the new Secure Mesh Site (v2) workflow for all Customer Edge deployments. You can find this workflow here.

F5 Distributed Cloud Services support site deployment for a Kernel-based Virtual Machine (KVM) with libvirt. This document explains how to perform Distributed Cloud Services node installation on a server using a KVM with libvirt and to perform site registration on F5 Distributed Cloud Console (Console).

The following is a sample topology for the hypervisor and guest machine setup. The sample shows three guest virtual machines installed with F5 Distributed Cloud Services Site software running on the hypervisor host.

Only one virtual machine is required. However, if you require a high-availability (HA) deployment, you must deploy three VMs.

Important: Each virtual machine (VM) must have the same cluster name and a unique hostname.

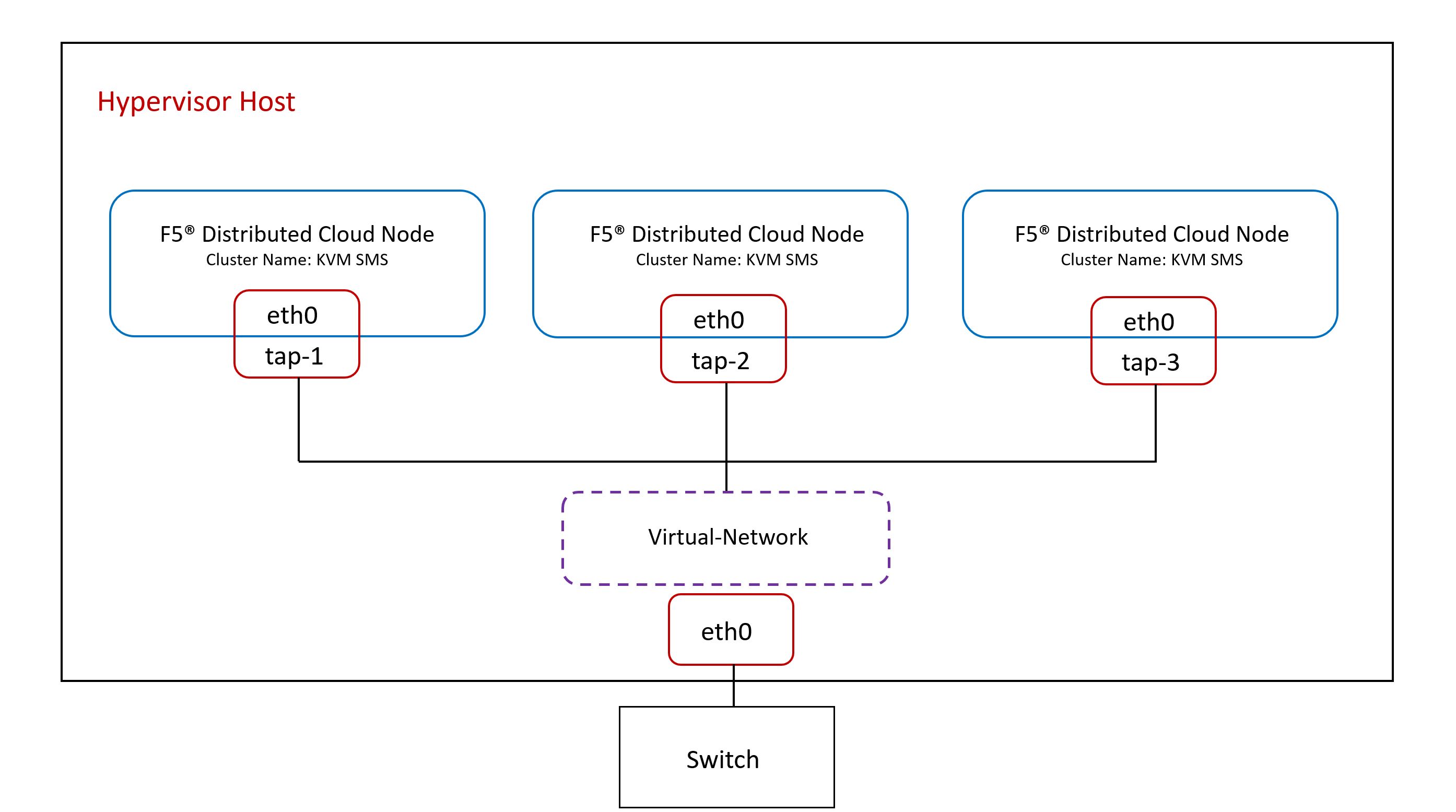

Figure: Hypervisor Topology

There are three ways to deploy a Secure Mesh Site using KVM. Review the Prerequisites section and then see the following sections for more information:

Prerequisites

A Distributed Cloud Services account. If you do not have an account, see Getting Started with Console.
A server supporting hardware virtualization. The KVM only works if the server CPU has hardware virtualization support (Intel VT or AMD-V).
KVM installed and running.
At least one interface with Internet access. Distributed Cloud Services Node Zero-Touch Provisioning requires Internet connectivity to the Distributed Cloud Console.
A KVM image file. Click here to download.
Resources required per node: Minimum 8 vCPUs and 32 GB RAM. 80 GB is the minimum amount required for storage. However, to deploy an F5 Distributed Cloud App Stack Site, F5 recommends a minimum of 100 GB of storage. For a full listing of the resources required, see the Customer Edge Site Sizing Reference guide. All the nodes in a given CE Site should have the same resources regarding the compute, memory, and disk storage. When deploying in cloud environments, these nodes should use the same instance flavor.
Allow traffic from and to the Distributed Cloud public IP addresses to your network and allowlist related domain names. See F5 Customer Edge IP Address and Domain Reference for Firewall or Proxy Settings guide for the list of IP addresses and domain names.
To ensure intra-cluster communication checks, you must enable Internet Control Message Protocol (ICMP) between the Customer Edge (CE) nodes on the Site Local Outside (SLO) interfaces.
The --cloud-init option was introduced in virt-install version 3.0.0. Ensure you update your system to this version.

Important: After you deploy the CE Site, the IP address for the SLO interface cannot be changed. Also, the MAC address cannot be changed.

By proceeding with the installation, download and/or access and use, as applicable, of the Distributed Cloud Services software, and/or Distributed Cloud Services platform, you acknowledge that you have read, understand, and agree to be bound by this agreement.

Note: The following procedures are based on virt-install packages. You can also use virt-manager using the same parameters.

Create Secure Mesh Site

Before you deploy a single-node or multi-node site (for HA) on KVM, you must create a site in the F5 Distributed Cloud Console. For information, see Create Secure Mesh Site.

When you create your site, make sure to use the following settings:

Name: The cluster name. For HA deployments, each node must have the same cluster name.
Hostname: A unique hostname for each site. To configure an HA deployment, each site must have a different hostname.
Generic Server Certified Hardware: For single interface deployments, set to kvm-voltmesh. For two-interface (OUTSIDE, INSIDE) deployments, set to kvm-regular-nic-voltmesh.

Important: When you create a Secure Mesh Site in the Distributed Cloud Console, you must also create a site token. You use that same site token later when you deploy the Secure Mesh Site on KVM.

Deploy a Secure Mesh Site with an ISO Image

To deploy a Secure Mesh Site from the ISO image you downloaded from F5, you must complete the following high-level steps:

Spawn a virtual machine (VM) to host the Secure Mesh Site.
Install the Red Hat Linux 9 (RHEL9) operating system (OS) on the VM.
Provision Distributed Cloud configuration.
Register the site and complete Distributed Cloud configuration.

Create Node VM

To spawn a VM from an ISO image that you downloaded from F5, enter the following commands.

% qemu-img create /var/lib/libvirt/images/kvm-sms.qcow2 80G

% virt-install \
    --name kvm-sms \
    --vcpus 8 \
    --memory 32768 \
    --network network=default,model=virtio \
    --disk path=/var/lib/libvirt/images/kvm-sms.qcow2,bus=virtio,cache=none,size=80 \
    --cdrom /var/lib/libvirt/images/RHEL-9.2024.11-Installer.iso \
    --accelerate \
    --os-variant rhl9 \
    --virt-type kvm \
    --noautoconsole \
    --graphics vnc

Depending on how you want to deploy your site, you can also consider the following actions:

To deploy a site with two interfaces (OUTSIDE, INSIDE), add another network section.
To build an HA cluster, spawn two additional VMs.

Install the RHEL9 Operating System

The following steps explain how to install the RHEL9 OS on your VM with the ISO image that you downloaded from F5.

Step 1: Install RHEL9.

Connect to a VNC console and complete the following steps to select the language and disk. To connect, type: virsh vncdisplay kvm-sms.

For KVM deployments, you must select VDA as the disk type. You specify disk size when you spawn the VM.

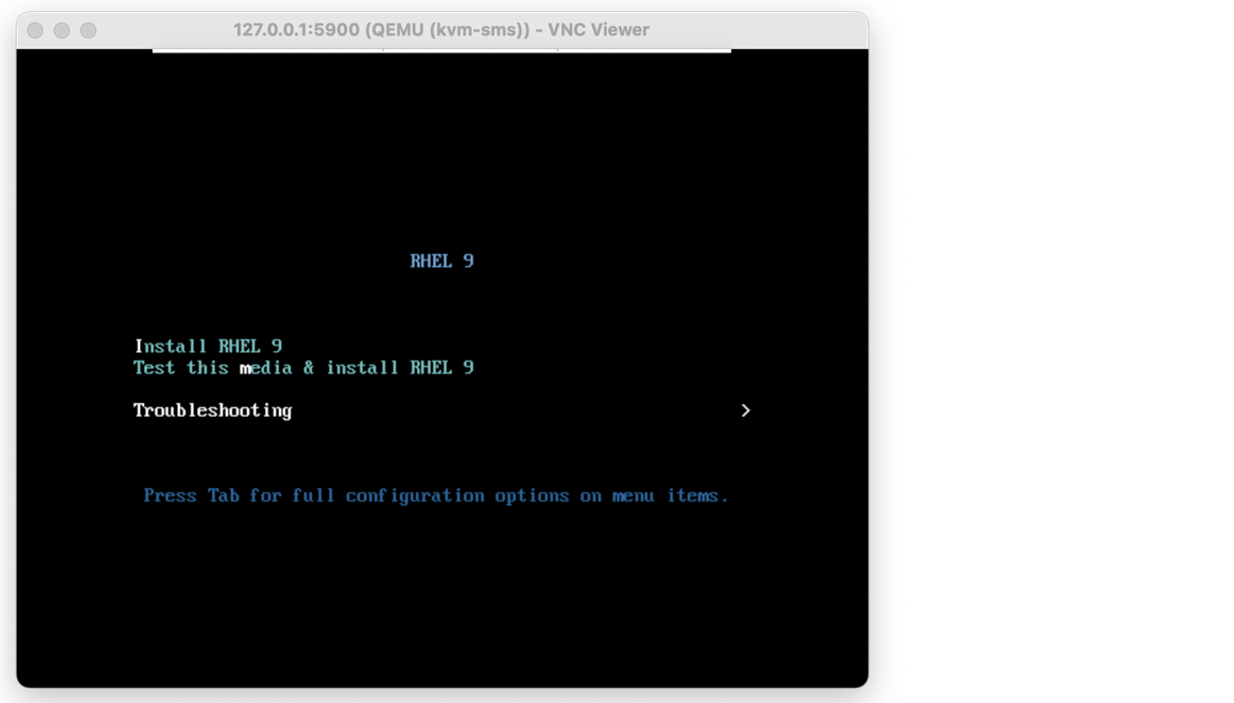

Figure: VNC console

Select the language you want to use.

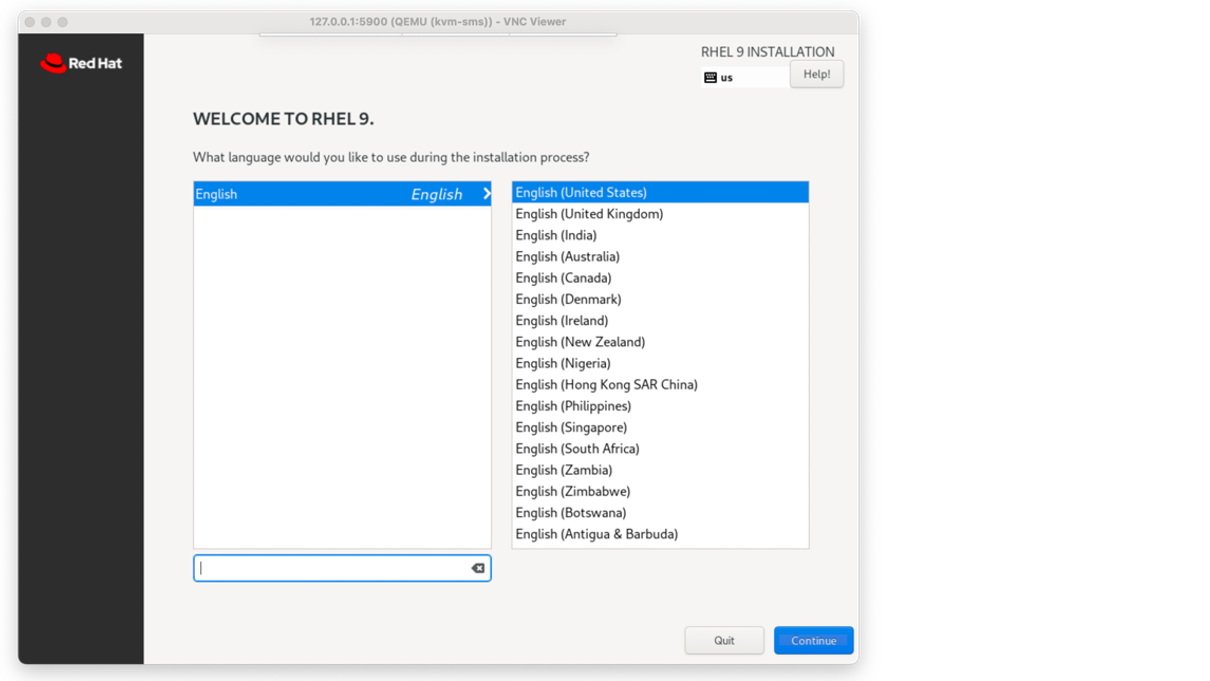

Figure: Language selection

Select the disk where you want to deploy the RHEL9.

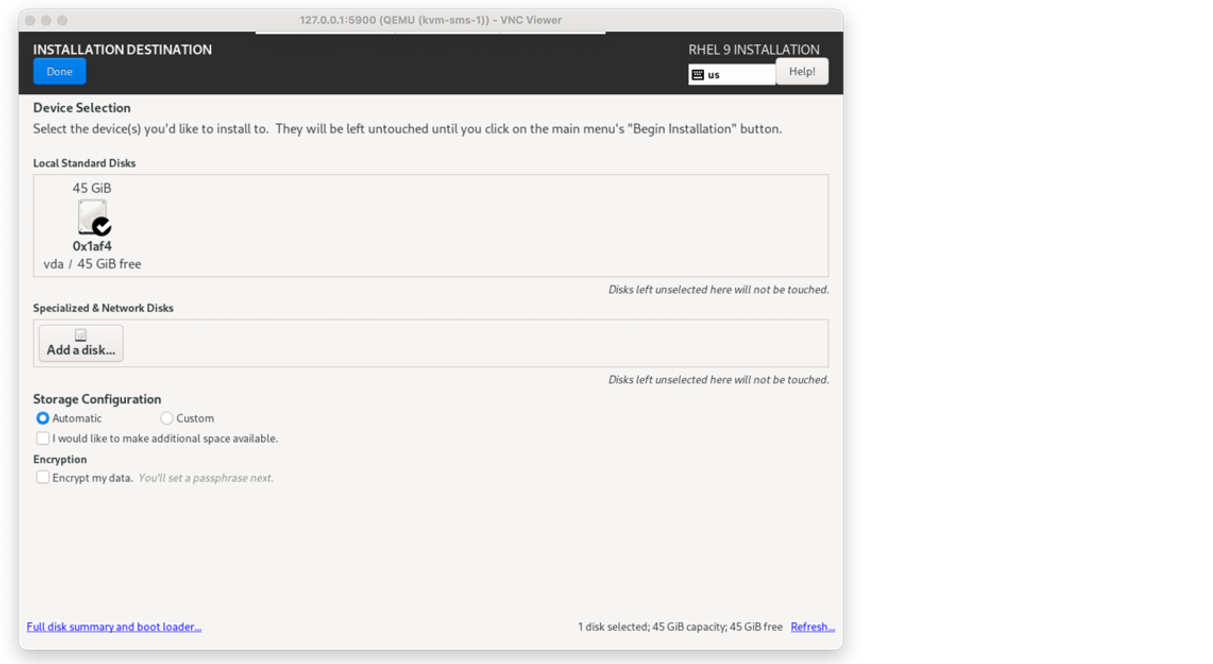

Figure: Disk selection

Review your configuration settings.

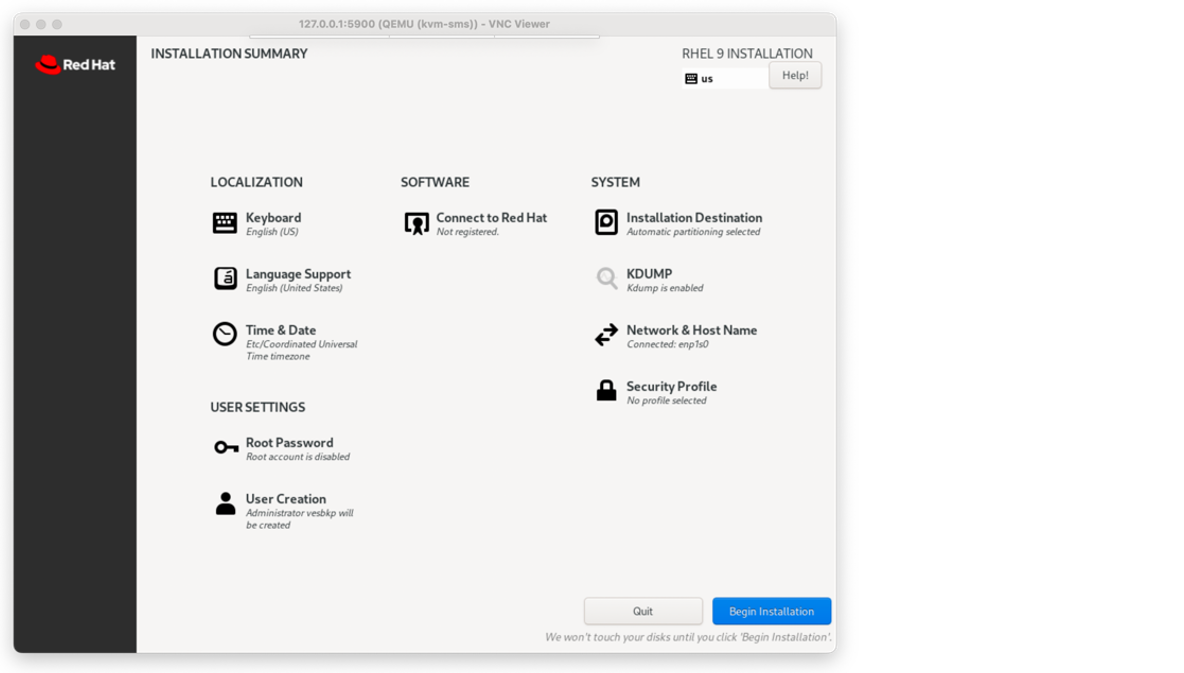

Figure: Configuration settings

Complete the installation.

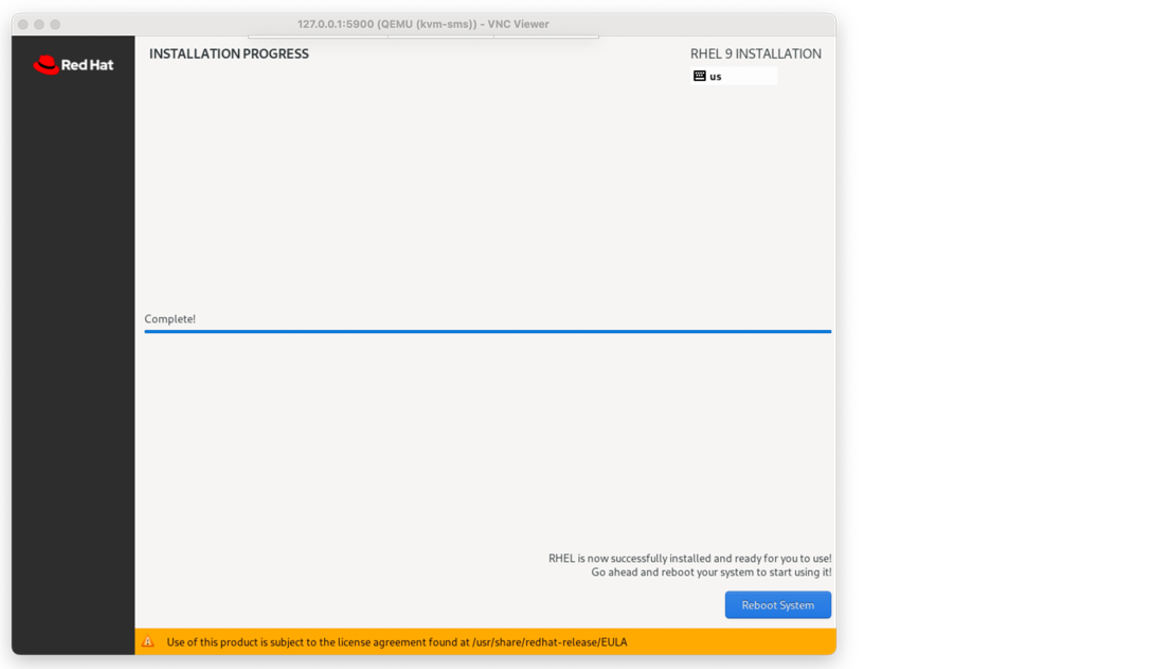

Figure: Installation progress

Step 2: Restart the VM.

After the VM reboots, you must restart the VM.

To restart the VM, type: virsh start kvm-sms.

Important: If you are configuring an HA deployment, you must restart all nodes in the HA cluster.

Note: After you reboot the VM, it takes a few minutes to prepare the site shell. Wait a few minutes before you start provisioning Distributed Cloud configuration.

Provision Distributed Cloud Configuration

Step 1: Connect to the VM.

Do one of the following to connect to the VM:

To connect to the VM through a console window:

Open a console window and type virsh console kvm-sms:
When prompted, enter the following information:
- Username: admin
- Default password: Volterra123

To connect to the VM using SSH:

From a command prompt, type virsh domifaddr kvm-sms.
Type ssh admin@192.168.122.9.

Step 2: Change the VM admin password.

The first time you connect to the VM, you are prompted to change the KVM Secure Mesh Site admin password.

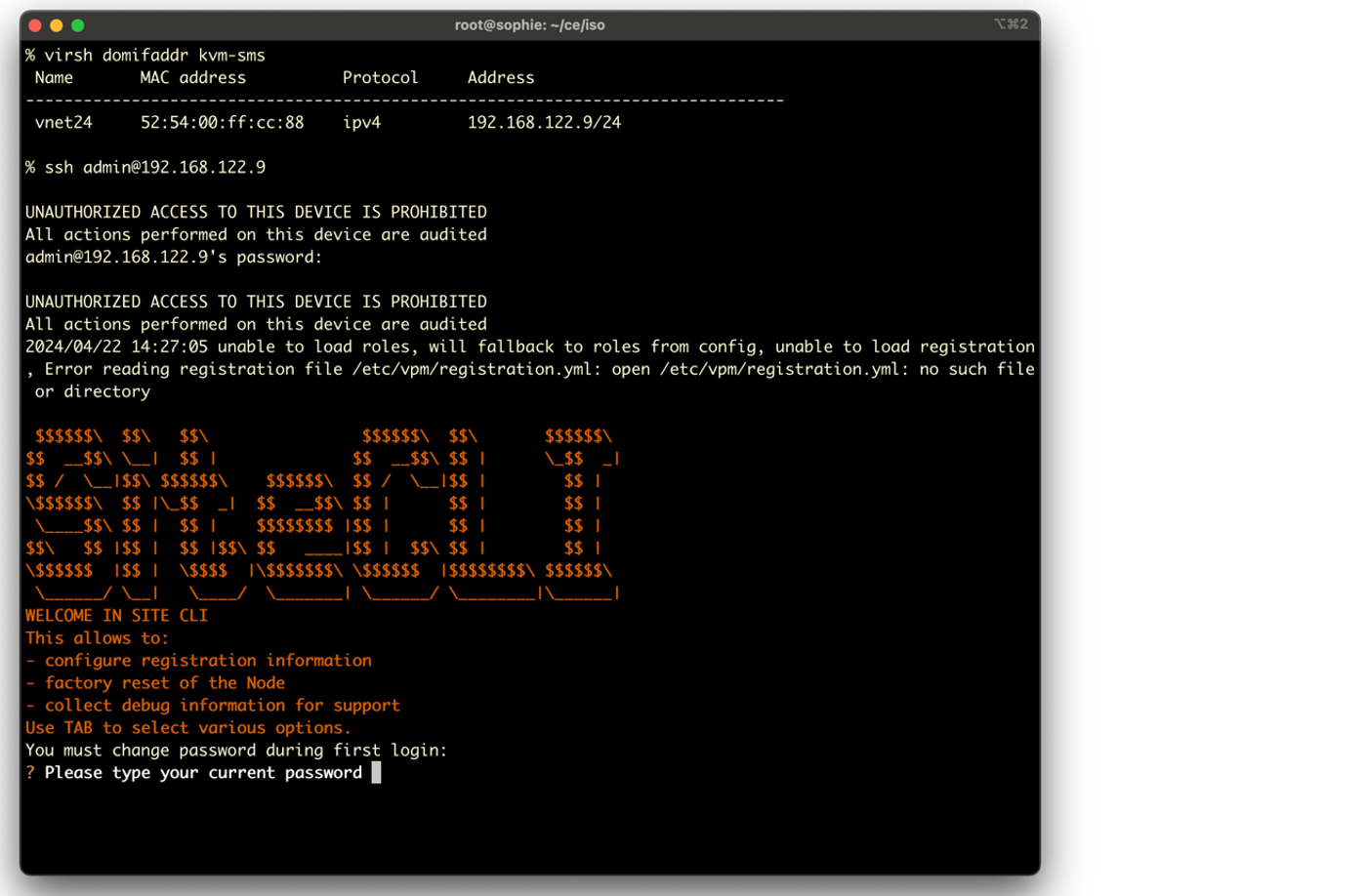

Figure: Change password

Step 3: Configure KVM Secure Mesh Site network.

To configure the KVM Secure Mesh Site network, enter the required configuration information.

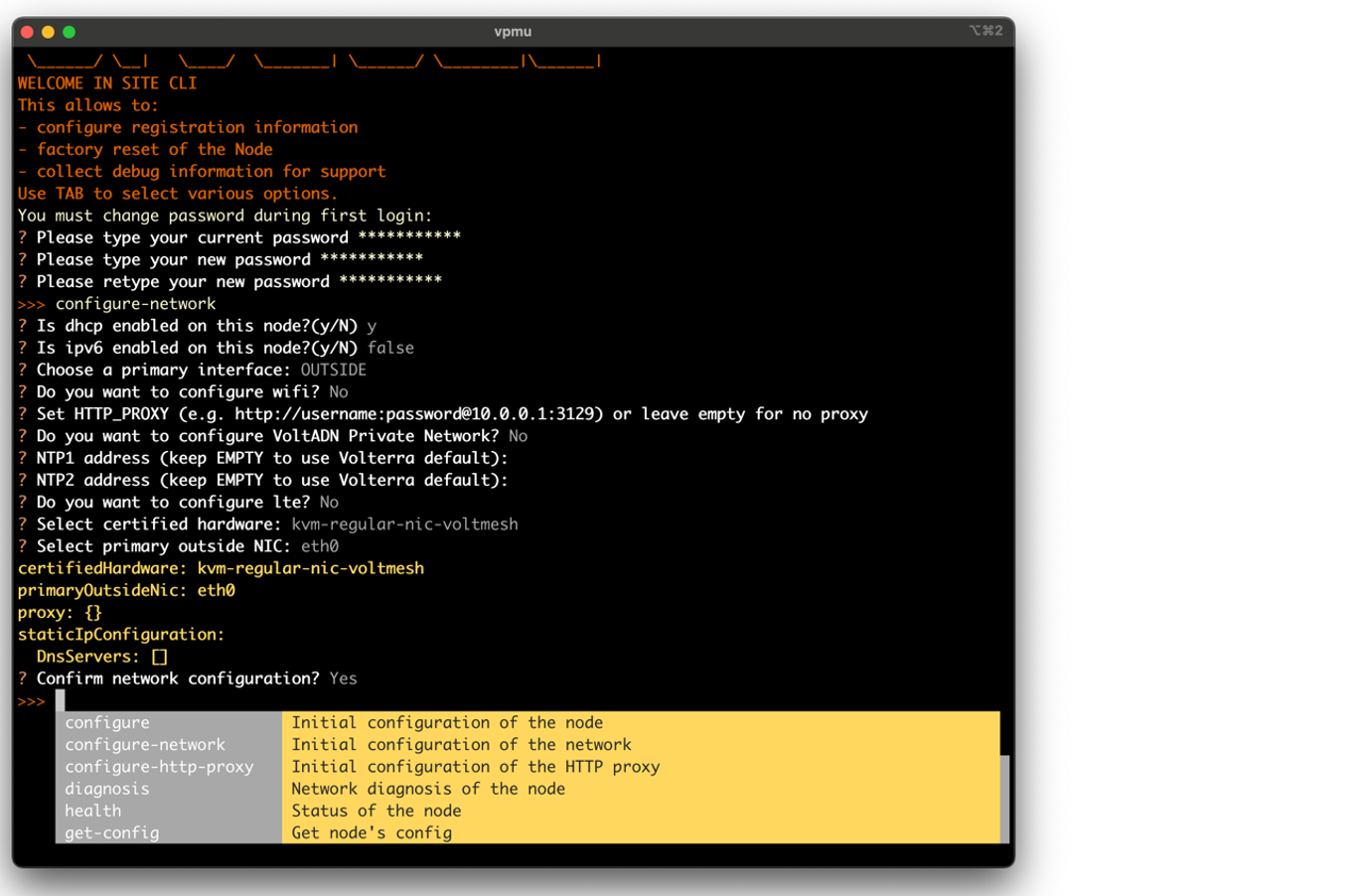

Figure: Configuration information

After you provide the required network configuration information, the system automatically reboots.

Step 4: Configure KVM Secure Mesh Site deployment parameters.

Configure KVM Secure Mesh Site deployment parameters.

Important: You must use the same cluster name, hostname and certified hardware parameter values and the same site token that you used when you added the Secure Mesh Site in the Distributed Cloud Console.

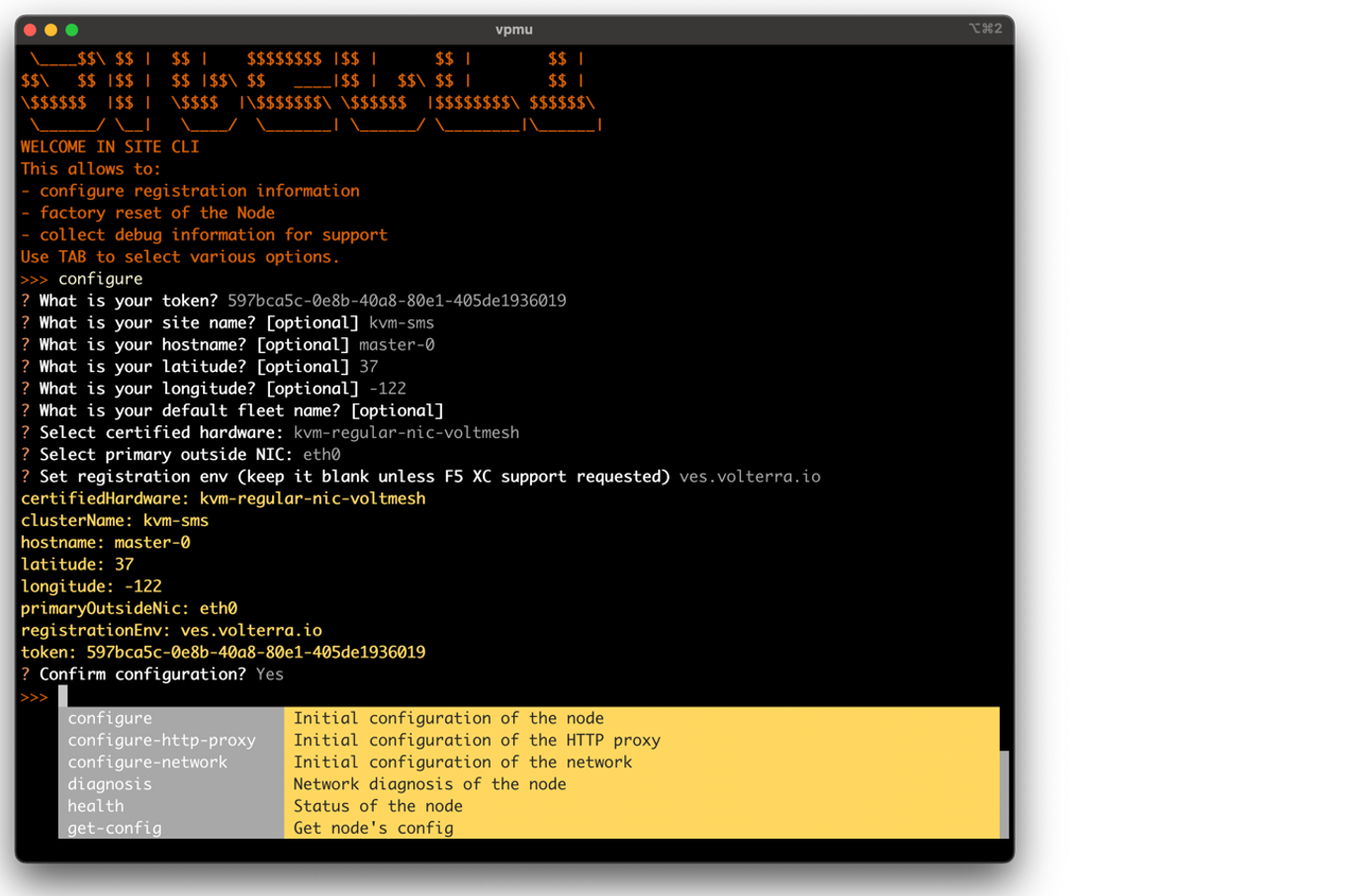

Figure: KVM Secure Mesh Site deployment parameters

Step 5: Register the site and complete Distributed Cloud configuration.

After you spawn the VM and deploy a Secure Mesh Site, see Register CE Site to finish Distributed Cloud configuration.

Deploy a Secure Mesh Site with a QCOW2 Image

To deploy a Secure Mesh Site from a QCOW2 image, you must complete the following high-level steps:

Spawn a VM to host the Secure Mesh Site.
Register the site and complete Distributed Cloud configuration.

Templates for building files can be found under these links. This repository is publicly available.

Before you begin, you must edit the following variables in user-data.tpl to match your entries in your Secure Mesh Site:

cluster-name
host-name
latitude and longitude
xc-environment-api-endpoint: You must set this to ves.volterra.io
certified-hw: For single interface deployments, replace certified-hw with kvm-voltmesh. For two-interface (OUTSIDE, INSIDE) deployments, replace certified-hw with kvm-regular-nic-voltmesh.

Step 1: Spawn a VM to host the Secure Mesh Site.

To spawn a VM from a QCOW2 image, enter the following commands.

% genisoimage -output cloud-init.iso -volid cidata -joliet -rock user-data meta-data

% cp rhel-9.2024.6-20240216073447.qcow2 /var/lib/libvirt/images/kvm-sms.qcow2

% virt-install \
    --name kvm-sms \
    --vcpus 8 \
    --memory 32768 \
    --network network=default,model=virtio \
    --disk /var/lib/libvirt/images/kvm-sms.qcow2,device=disk,bus=virtio,format=qcow2 \
    --disk cloud-init.iso,device=cdrom \
    --import \
    --os-variant rhl9 \
    --virt-type kvm \
    --accelerate \
    --noautoconsole \
    --graphics none

Step 2: Register the site and complete Distributed Cloud configuration.

After you spawn the VM and deploy a Secure Mesh Site, see Register CE Site to finish Distributed Cloud configuration.

Deploy a Secure Mesh Site Using Terraform Automation (QCOW2)

This is the recommended way to deploy a KVM Secure Mesh Site. View the README file for deployment information: https://github.com/f5devcentral/f5-xc-kvm-ce.

The repository includes all automation needed to deploy a KVM Secure Site Mesh with one terraform apply command.

Register CE Site

After you install the F5 Distributed Cloud Services node, you must register it as a CE Site in the Distributed Cloud Console. For a multi-node CE Site, you must register each node.

Note: The USB allowlist is enabled by default. If you change a USB device, such as a keyboard after registration, the device will not function.

Register Multi-Node Site

Step 1: Navigate to the site registration page.

Log into Console.
Click Multi-Cloud Network Connect.
Click Manage > Site Management > Registrations.

Step 2: Accept the registration requests.

Registration requests are displayed in the Pending Registrations tab.

Click Accept to accept the registration requests from the master-0, master-1, and master-2 nodes. The node names will differ.
Enter the same values for the following parameters for all the registration requests:
- In the Cluster name field, enter a name for the cluster. Ensure that all master nodes have the same name.
- In the Cluster size field, enter 3. Ensure that all master nodes have the same cluster size.
Enter all mandatory fields marked with the asterisk (*) character.
Click Save and Exit.

Step 3: Check site status and health.

It may take a few minutes for the site health and connectivity score information to update.

Click Overview > Infrastructure > Sites.
Click on your site name. The Dashboard tab appears, along with many other tabs to inspect your site.
Click the Site Status tab to verify the following:
- The Update Status field has a Successful value for the F5 OS Status section.
- The Update Status field has a Successful value for the F5 Software Status section.
- The Tunnel status and Control Plane fields under the RE Connectivity section have up values.

Note: The factory reset functionality is not supported. To update a site node, power off and then destroy it. Perform the same procedure as above to recreate a virtual machine (VM). After you create and register your site, you can access the local user interface (UI) to perform certain configuration and management functions. For more information, see the Access Site Local User Interface guide.

Register Single-Node Site
